Independent
Bavarian Defence
A tower-defence strategy game in Unity — and an exercise in making hundreds of entities update every frame without dropping below 60fps on mid-range hardware.
- Entity lifecycle
- Pooled
- Target search
- Spatial hash
- Movement update
- Packed loops
Enemies and projectiles reused memory instead of triggering mid-wave GC spikes.
Towers looked at nearby enemies instead of scanning the entire map each frame.
Hot movement data stayed cache-friendlier than per-object Update calls.
Outcome
Kept late-wave simulation smooth by removing GC churn and bounding the work inside the hottest update paths.
Key decision
Used manual data-oriented loops and a spatial hash instead of a simpler object-per-Update model because frame-time stability mattered more than editor convenience.

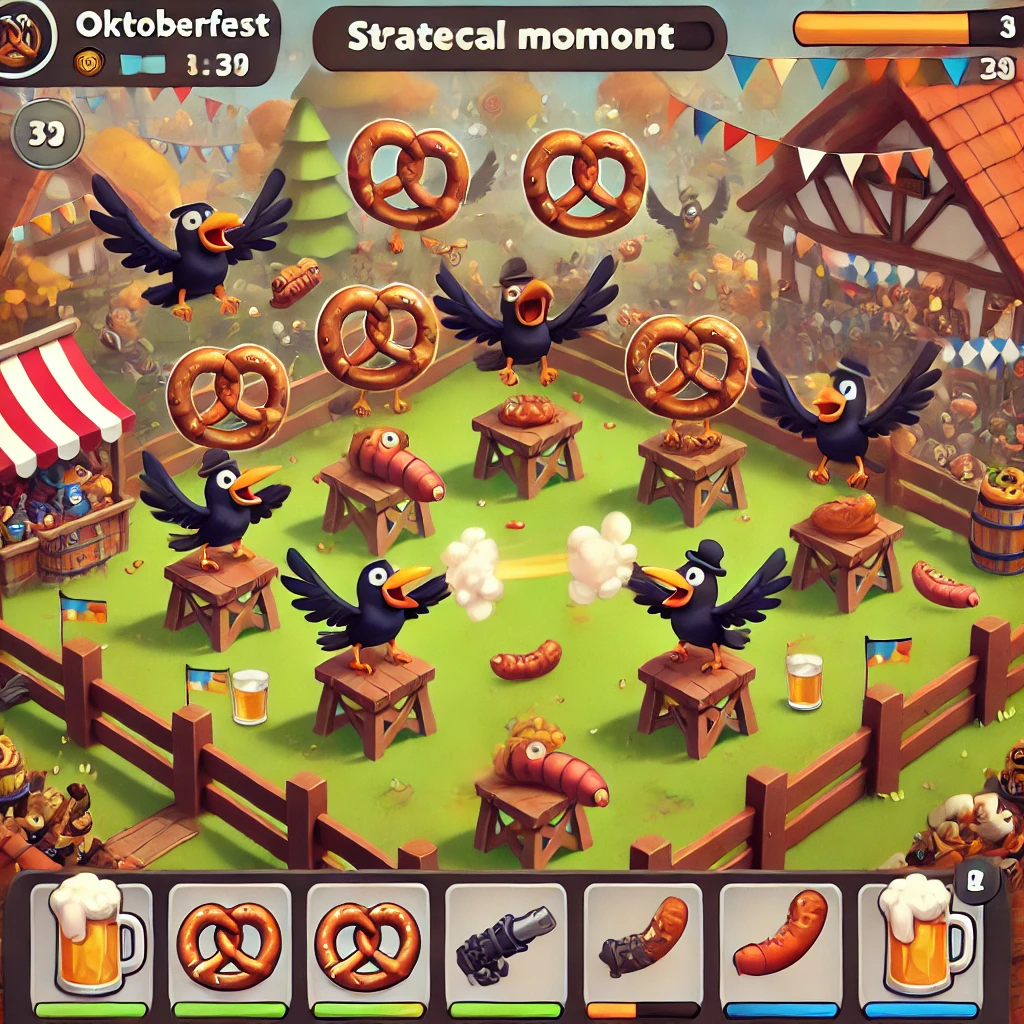

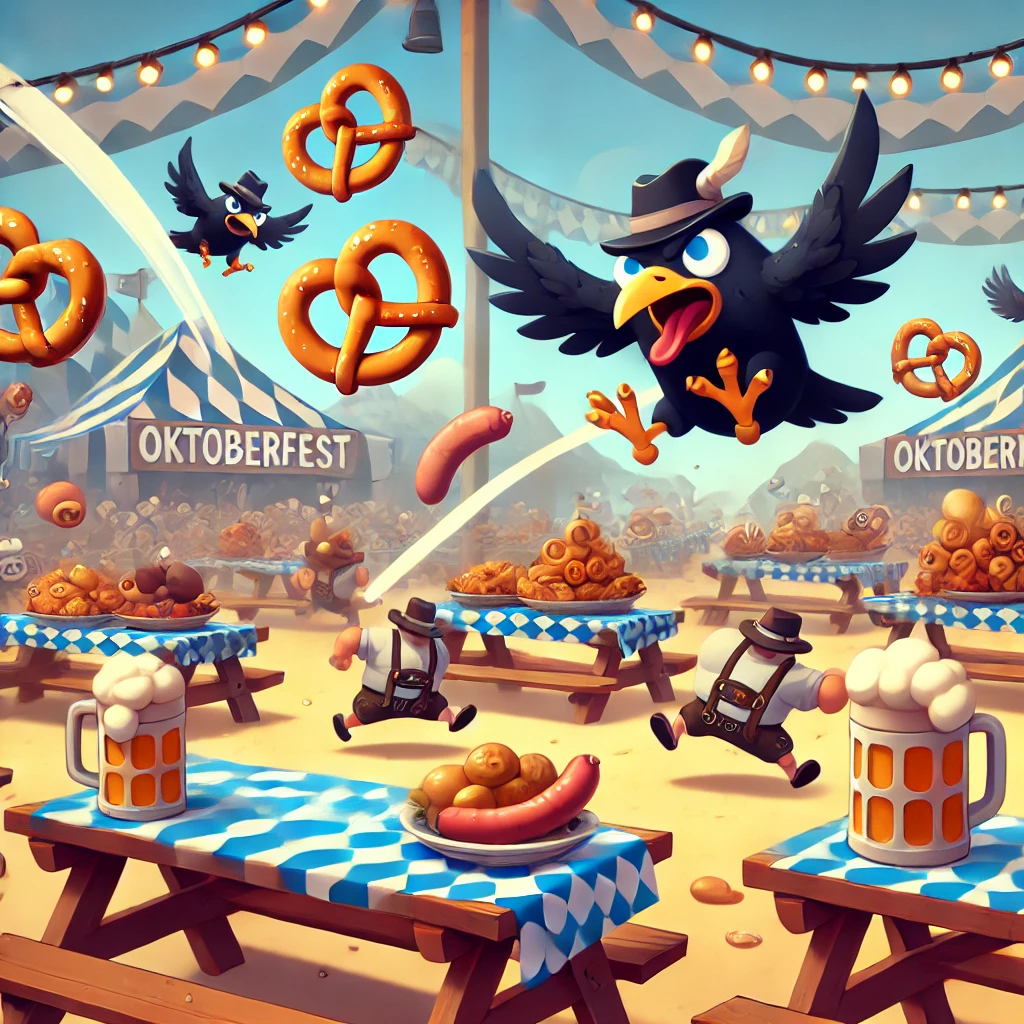

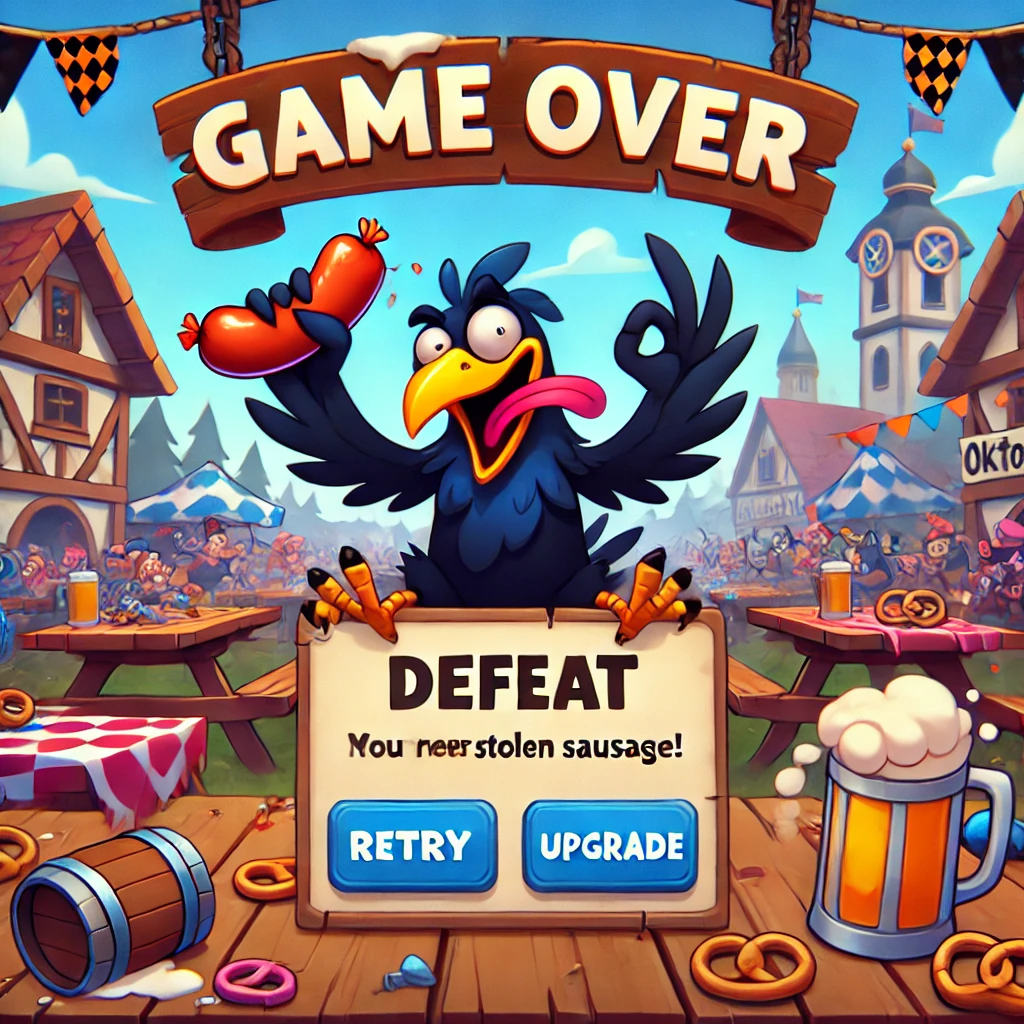

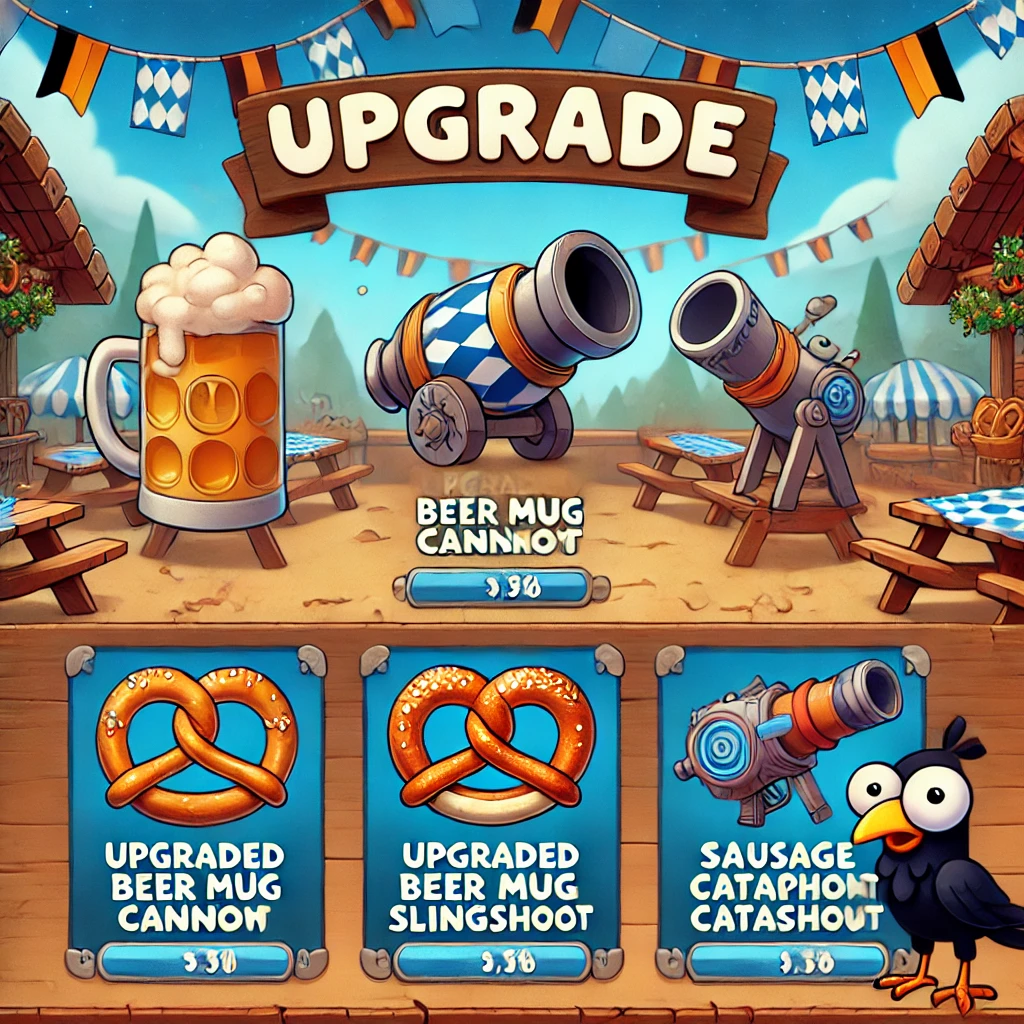

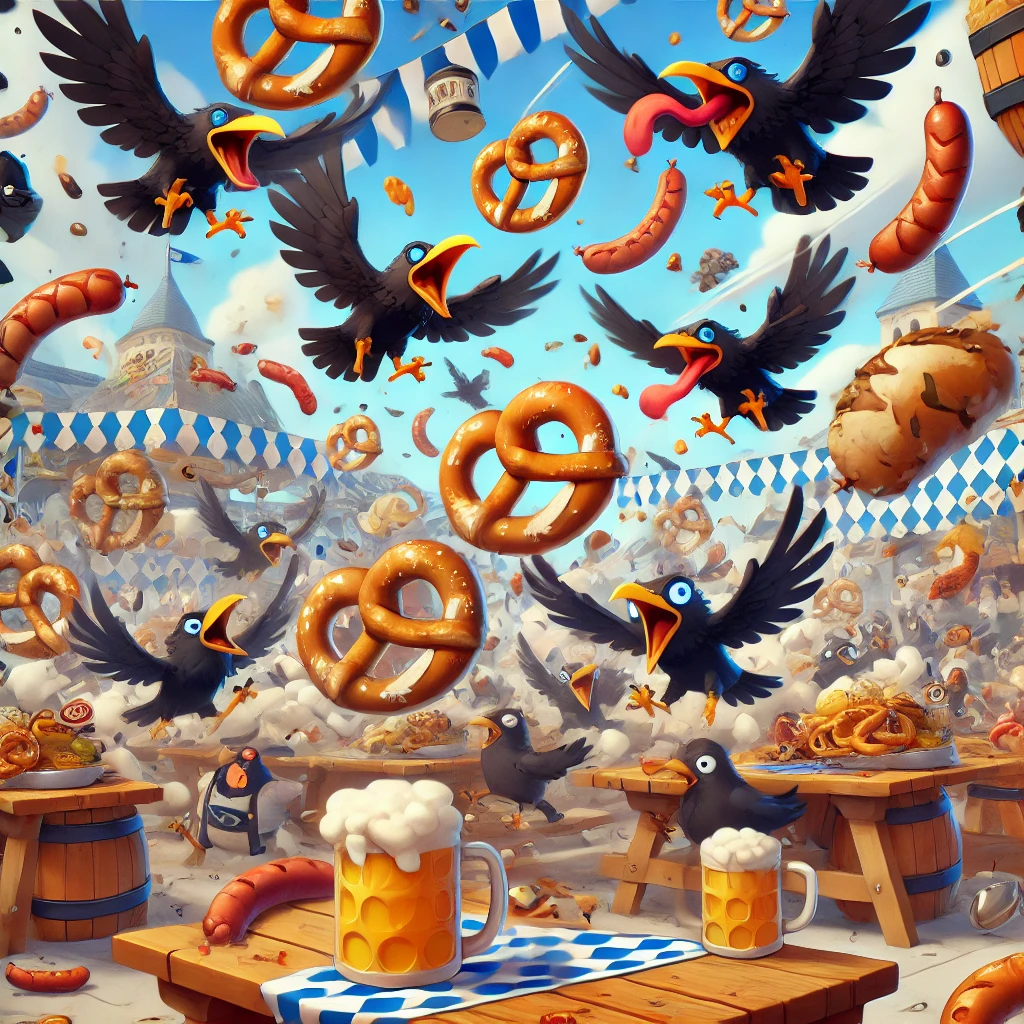

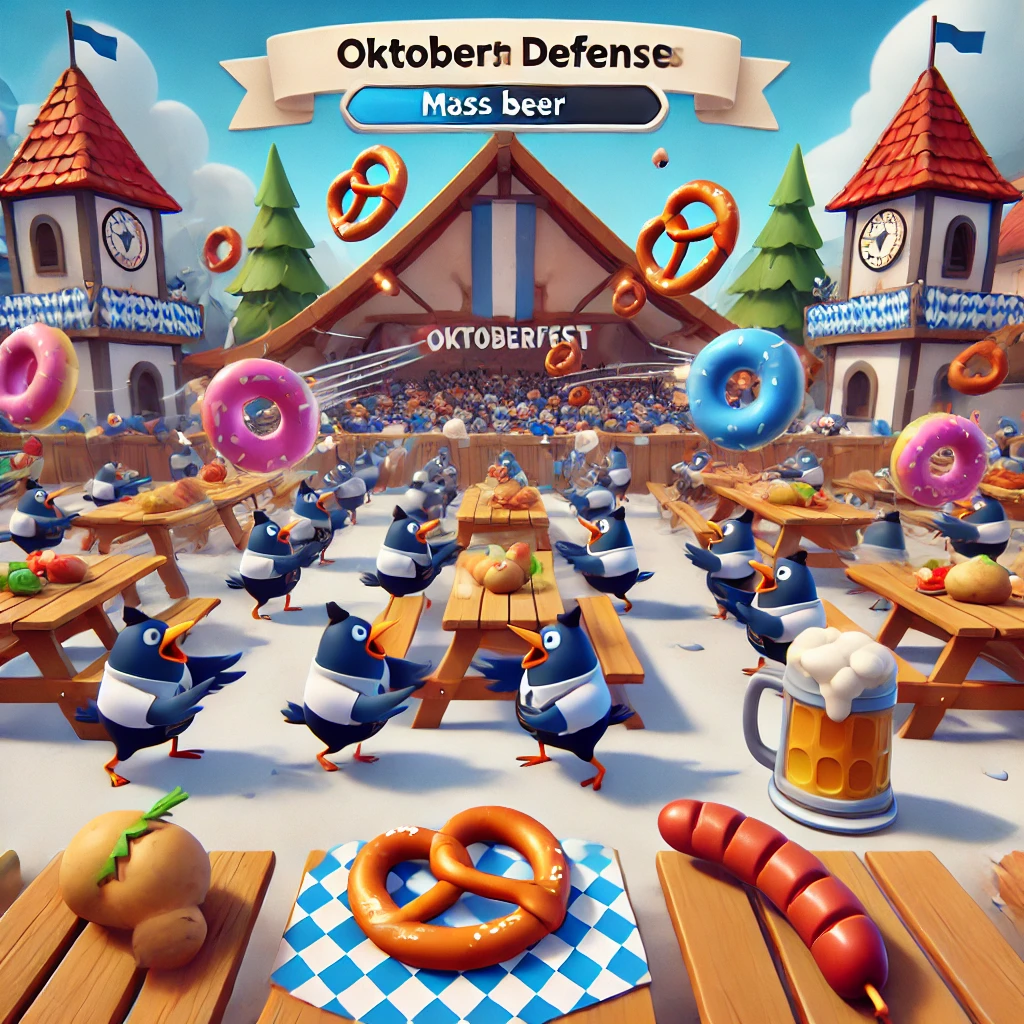

Screens
The problem
Tower defence is a deceptively demanding genre for performance. Late waves put hundreds of enemies on screen, each moving along a path, each a candidate target for dozens of towers, each with health bars and status effects. Done naively it is an O(towers × enemies) problem evaluated every single frame — and it degrades exactly when the game is at its most exciting.
This project was, in practice, a performance engineering exercise wearing a game costume.
Killing the frame-time spikes
The first playable build ran fine early and stuttered badly in late waves. The Unity profiler pointed at two culprits, and neither was the rendering.
1. Garbage collection
Enemies were instantiated on spawn and destroyed on death. At a few enemies per second this is invisible. At forty per second, allocation churn triggered GC collections mid-wave, and every collection was a visible hitch at the worst possible moment.
The fix is standard and worth doing properly: object pooling. Enemies, projectiles, and damage numbers are allocated once at load and recycled. Spawning becomes taking from a free list and resetting state; dying becomes returning to the list. Steady-state allocation drops to zero, and with nothing to collect, the GC stops interrupting.
The subtlety is state reset. A pooled object carrying stale state from its previous life is one of the nastier bug classes in games, because it reproduces only under specific reuse orders. Every pooled type resets through a single Reset() that the pool calls — not through ad-hoc field assignment at the call site.
2. Target acquisition
Each tower scanning every enemy each frame is the naive O(n×m) loop. With 40 towers and 500 enemies that is 20,000 distance checks per frame, and it is pure waste — most enemies are nowhere near most towers.
Replacing it with a spatial hash grid bounded the work. The world is divided into cells sized to the largest tower range; a tower only examines enemies in its own cell and immediate neighbours. Cost per tower becomes roughly constant in total enemy count and proportional instead to local density.
Two details mattered:
- Enemies update their grid cell only when crossing a boundary, not every frame.
- Distance comparisons use squared magnitude. Square roots in a hot loop are avoidable; comparing squared distances gives the same ordering.
Data-oriented movement
Enemy movement moved out of per-object Update() calls into a single system iterating contiguous arrays of positions and velocities. Hundreds of individual Update() invocations each frame carry real overhead — the managed/native boundary crossing is not free — and scattered object memory means the CPU cache misses constantly.
One loop over packed arrays is dramatically more cache-friendly. This is the same insight behind Unity’s DOTS, applied by hand at a scale where the full ECS would have been overkill.
What this project taught me
The performance techniques here are not game-specific. Pool expensive objects, bound your search space with the right data structure, keep hot data contiguous, and profile before optimising. I have applied all four to backend services since — the constraint of a 16ms frame budget just makes the lesson impossible to ignore.
